Tips and Tricks on working with Xmods
(These can apply to both the Xmods and Evo but not always)
  1. ALWAYS remove the batteries before working on your XMOD!!!
  2. Add the Metal Bearing Upgrade ASAP! The longer you wait, the more the bushing holes elongate and when you do try to install the bearings, they will not fit tight.
  3. Buy a Good set of mini screwdrivers! Using the supplied screwdriver can result in damage to the plastic screw bosses due to improper tightening. Just take a walk over to any tool isle and you can pick-up a nice mini screwdriver set for about $10
  4. Sand the Shock Tubes, the Suspension Upgrade is a worth while investment that greatly improves the handling. The plastic shock bodies have burrs on them that should be sanded off, use a small flat hobby file to do this.
  5. To cure the poor turning response/radius in the original Xmod you can install a pair of resistors to cure it for more details click Here.
  6. For those trying to reduce weight, there are Carbon Fiber driveshafts available one site that sells them is AtomicMods.com
  7. If you are drag racing your XMOD and do not need to take high-speed turns, you can convert your ball-bearing differential to a locker for better traction. To do this, disassemble the rear axle assembly, remove the 3 screws holding the differential together and insert a small dab of Silly Putty. Some people have used glue, but note that glue is NOT reverseable and can hinder cornering ability of your XMOD.
  8. Tire Compound Usage: some preferred set-up configurations

    Tire configurations
    Soft Rubber
    Hard Rubber
    Front wheels
    More Steering Response
    Less Steering Response
    Rear wheels
    More Traction
    Drag Racing
    Less Traction

  9. To give your XMOD that 'personal touch', you can buy almost any 1:2X Scale Model from a hobby shop and adapt the body to fit your XMOD. Your XMOD has three different settings to adjust chassis length on the bottom and top of the rear axle assembly to fine-tune the wheelbase to match the model body.
  10. To get an even more personalized look, add vinyl graphics. Get some colored adhesive vinyl sheets from your local office supply store and cut-out your own graphics. By using vinyl, it is easy to remove when you want to change the look of your car.
  11. If you have upgraded to the Metal Bearings, you need to clean them every so often to keep the dirt and grime from building up in them. The easiest method is to remove the bearings and soak them in Isopropyl Alcohol overnight. When you get up the next morning, remove them, dry them off with compressed air and lube them with a lightweight lube for longer lasting performance.

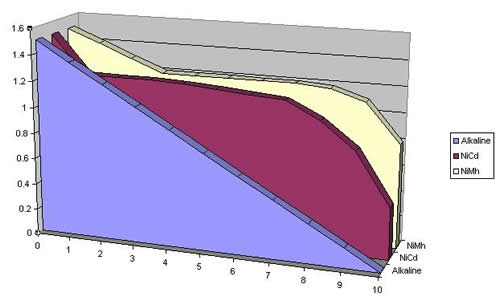

  12. Buy a good set of NiMh Rechargable batteries for your XMOD. Alkaline batteries do provide a better voltage at full charge, but as you can see from the plot below, it will drop over the life of the battery resulting in a linear loss of performance. A NiMh battery will provide a more consistant performance over it's life cycle.

  13. Tips for Motors
  • You can modify your stock motor or purchase many aftermarket motors that have been designed for pretty well much any application you may have you can start with a very smple and inexpensive upgrade to your stock motor using an old Crest Spinbrush click Here to read more. You can also check out my Review section for information on the Neodymium Magnet upgrade and I also have reviews of a few motors I have purchased Here
  • Use a pinion puller when changing pinion gears. If you use a vise, you can put burrs on the pinion teeth that will increase friction and make the car run slower. Using your teeth is bad for obvious reasons such as un-needed crowns!
  • Keep the capacitors on the motor. They are not hurting performance by being there. What they are doing is protecting the motor from high-frequency harmonics and brush arching.
  • When disassembling or re-assembling a motor with carbon brushes, use a paperclip or tweezers to spread the brushes apart to clear the commutator. Carbon brushes are very brittle and can break if you subject them to excessive side loads.
  • Do not try to modify the number of windings on your motor and then test it by just installing it into your car. If you remove too many windings, you decrease the motor impedance and therefore it will draw more current through the FET. If this current is too high, you can damage the FET and/or the ESC. Always measure the motor using a current meter to make sure your FET's can handle it.
  • Building the "Perfect Motor" ... Remember, there is trade-offs when making different mods to your motor. By increasing torque, you reduce top end. By increasing top speed, you reduce torque. The "perfect motor" must meet your racing needs. There is a VERY delicate balance in the fine-tuning of these motors to provide you with the best "bang for your buck". I have done some homework on motors and if you want more information about windings and such please feel free to read about it Here.

XMOD motors use carbon brushes to transfer power to the armature. These brushes are square when new and the armature is round. If you run a new motor at full power without breaking the brushes in, you will decrease the life AND performance of the motor. There are several methods floating around the internet to properly 'break-in' a motor. WE DISCOURAGE USING THE WATER DRIP METHOD! Common sense tells us that water + metal = corrosion! Instead we suggest running the motor at 1/2 the rated voltage for 15 minutes to properly break-in the brushes.

Speed comparision chart for stock Stage 1 or Stage 2 motors, these are real world numbers, other sites may report faster speeds due to the use of a 'speed checker' this device is a 'bench' test rather the true real measured speed on the track.

Stage 1 (26,000 rpm)  WHITE          8 tooth
15Km/h (9.3 MPH)
 Gear Ratio=6
 RED              9 tooth
17Km/h (10.6 MPH)
 Gear Ratio=5.11
 YELLOW   10 tooth
19Km/h (11.8 MPH)
 Gear Ratio=4.40
 BLUE           11 tooth
21Km/h (13.0 MPH)
 Gear Ratio=3.82
Stage 2 (30,000 rpm)  WHITE          8 tooth
19Km/h (11.8 MPH)
 Gear Ratio=6
 RED              9 tooth
21Km/h (13.0 MPH)
 Gear Ratio=5.11
 YELLOW   10 tooth
24Km/h (14.9 MPH)
 Gear Ratio=4.40
 BLUE           11 tooth
26Km/h (16.2 MPH)
 Gear Ratio=3.82

I hope to have some info on the new Stage 3 kit soon.
